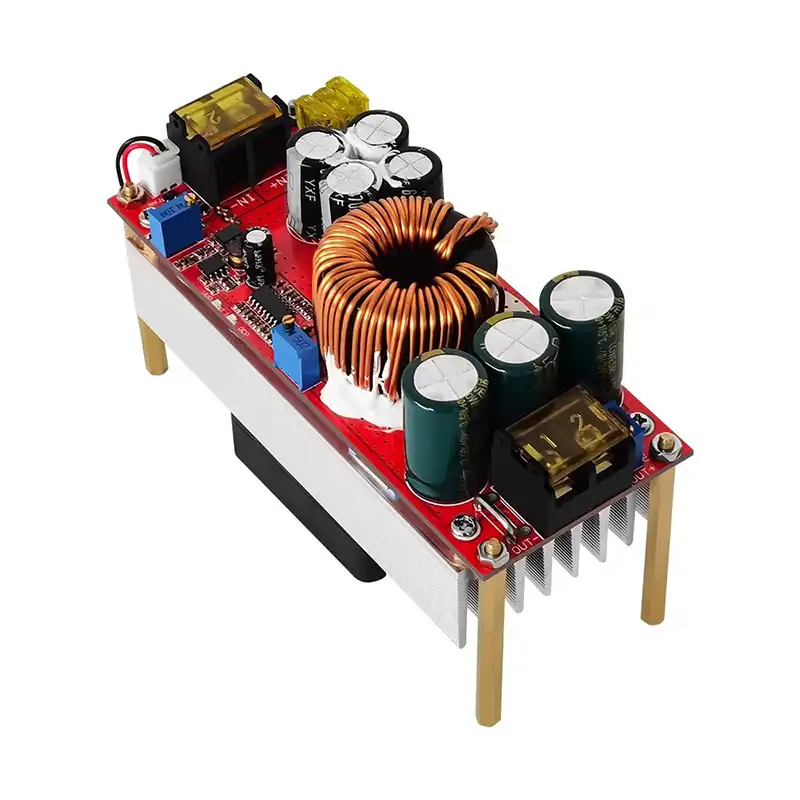

1500 Watts Boost Step UP Converter Module


Module Name: 1500W Boost Step Up Converter Module

Module Type: Non-isolated Boost Module (BOOST)

Input Voltage: DC 10-60V

Input Current: 10-30V input voltage, 30A

31-60V input voltage, 2A

Quiescent Current: 15mA (When increasing from 12V to 20V, the quiescent current will increase slightly with higher output voltages.)

Output Voltage: 12-90V continuously adjustable (The default output voltage is 19V for shipment. Please specify if a different voltage is required. Multimeters are available for adjustment.)

12-90V fixed output (for bulk orders)

Output Current: 20A maximum. Please improve heat dissipation if the output current exceeds 1A (depending on the input-output voltage differential; a larger voltage differential results in lower output current).

Constant Current Range: 0.8-20A (+/- 0.3A)

Input Reverse Polarity Protection: Yes (150A Power MOS Reverse Polarity Protection)

Low Battery Protection: Yes (8-50V Adjustable), Self-Recovery

Operating Temperature: -40°C to +85°C (In case of high ambient temperature, please improve heat dissipation)

Operating Frequency: 150kHz

Conversion Efficiency of the boost up converter module: 92%-97% (Efficiency is related to input and output voltage, current, and voltage differential; smaller voltage differential increases efficiency)

Input Overcurrent Protection: Yes (If input exceeds 3V, automatic protection occurs, power supply voltage is not increased)

Short-Circuit Protection: Yes (Input 30A fuse) Double short-circuit protection, used.

Input Reverse Polarity Protection: Yes (150A power MOSFET with reverse polarity protection. Can withstand long-term reverse polarity).

Mounting Method: Four 3mm copper standoffs

Wiring: Terminal blocks (Use high-current pure copper wire)

Module Dimensions: 130mm long, 52mm wide, 84mm high (height including standoffs and fan); 130mm long, 52mm wide, 67mm high (height excluding standoffs and fan)

Module Weight: 490g

Output power: = Input voltage * 30A. For example, 12V input * 30A = 360W. At 12V input, the power is 360W.

For example, 24V input * 30A = 720W. That is, at 24V input, the power is 720W.

Power Explanation to the Boost Step UP Converter:

Since the input current of this power supply is 30A at 10-30V and 2 at 31-60V, the output power is related to the input voltage. Higher input voltages produce higher power.

(Input voltage * input current equals total power.) For example, 12V input * 30A produces 360W. 24V input * 30A produces 720W. At 36V input, the input current is 2, resulting in a power output of 900W.


Default delivery of the boost up converter module


Output voltage approximately 19V, current approximately 30V, undervoltage protection approximately 10.5V. If you require a factory adjustment to a different voltage, please specify this when placing an order and contact us.

This product is designed to boost the voltage of lead-acid batteries, lithium batteries, solar cells, or power supplies for electric vehicles and battery charging. It offers powerful functions.


1. For example, if the original battery of an electric vehicle is 48V, it can be boosted to 60V to power the vehicle, thereby increasing the vehicle's speed and acceleration.

2. Charge your electric bicycle. (1. For example, if you have an unused 12V or 24V battery, this booster can boost the voltage and charge the original battery, effectively acting as a power bank for your electric vehicle. 2. The input can also be connected to solar cells, wind power, generators, and other power sources to boost the voltage and charge the original battery, increasing the vehicle's range.)

3. It can boost the battery voltage to increase the vehicle's speed. The recommended voltage should not exceed 10V.

4. Boost and stabilize the solar panel voltage.


Voltage Adjustment of the Boost Step UP Converter:


With the power supply connected and no load, use a flat-blade screwdriver to adjust the output "V-ADJ" potentiometer (marked in the image below) clockwise to increase the setting and counterclockwise to decrease the setting. Due to the large output capacitor, the output voltage will react slowly when switching from a high voltage to a low voltage. We recommend using smaller adjustment increments. (The default output voltage is set to 19V for shipment. Please specify or leave a message if you require a different voltage setting.)


Input Low Battery Protection Adjustment of the Boost Step UP Converter:


Low battery protection is primarily intended for battery input, preventing over-discharge and low battery voltage from damaging the power module and battery. Low voltage protection is also required when the input is a switching power supply.

Method 1: For example, to set low battery protection for a 12V battery, connect a 10V voltage to the power module input and use a flat-blade screwdriver to adjust RV1 (clockwise to increase the protection voltage, counterclockwise to decrease it) until the UVLO light illuminates. At this point, the low battery protection voltage is 10V. When the battery voltage drops below 10V, the power module will not boost (the input voltage is equal to the output voltage). Only when the input voltage exceeds 10V will the power supply automatically recover and start boosting.

Method 2: The Boost Step UP Converter Module Connect a battery or switching power supply to the input. If the UVLO light on the board is off, turn the RV1 potentiometer counterclockwise to illuminate it. Once it illuminates, turn it two full turns clockwise. If the UVLO light is on, turn the RV1 potentiometer clockwise to turn it off. Turn it two more turns after turning it off. (Applicable to voltages between 8V and 45V)
