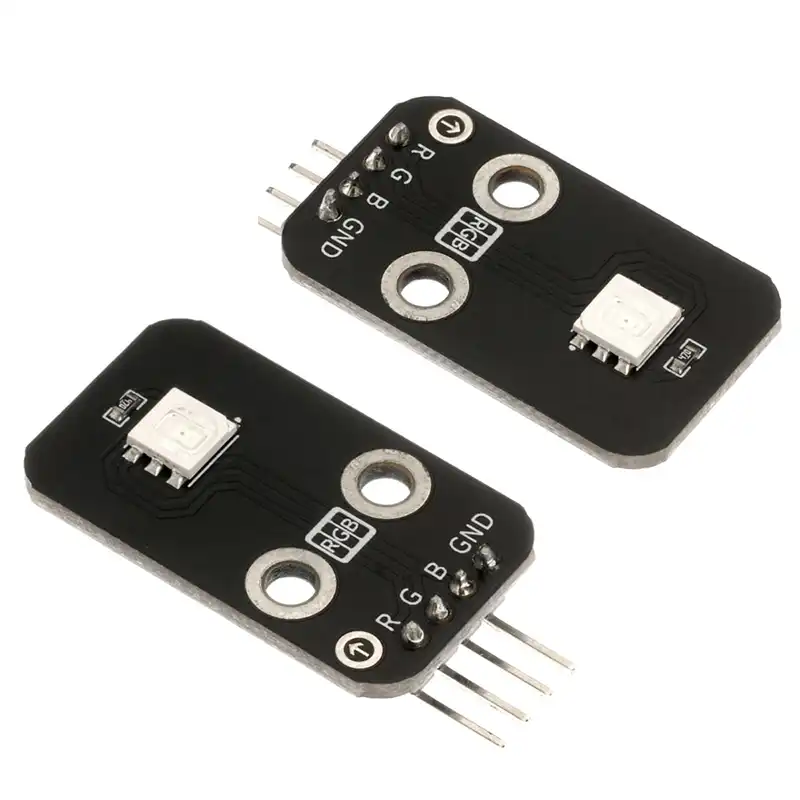

This RGB LED Module designed with 2.54MM Pin header. To use with Dupont cable is advised. This RGB Module is very suitable to program by Arduino, STM32, ESP32, Raspberry Pi etc.


Specification of the RGB Module


Working Voltage: 3.3V-5.5V


Connector: 2.54mm pin header


Mounting Method: Screw-on


Mounting Hole Specifications: 3mm diameter, 10mm pitch


Module Dimensions: 36mm*31mm*18mm


Signal Type: Digital


Trigger Condition: A high level input on the RGB pin lights up the LED; a low level turns off the LED.


Connector Description: GND connects to the negative terminal of the power supply, R connects to the red control signal pin, G connects to the green control signal pin, and B connects to the blue control signal pin.

About LED Introduction


LED stands for light-emitting diode and is made from a mixture of compounds: gallium (Ga), arsenic (As), and phosphorus (P). Gallium phosphide diodes emit red light, gallium phosphide diodes emit green light, and silicon carbide diodes emit yellow light. The reverse breakdown voltage of an LED is 5V. Because its positive volt-ampere characteristic curve is too steep, the module includes an onboard current-limiting resistor to control the current flowing through the tube during use. RGB, which stands for red, green, and blue channels, is an industry color standard. RGB displays a variety of new colors by varying and superimposing these three channels. According to statistics, 16,777,216 different colors can be created.
